Quality Check Group UX

Enable the creation of Quality Control Groups, Points, and Check Groups, automate quality check updates based on group actions, links related entities, and support archiving and unarchiving for efficient control and organization.
128.87 € 128.87 € (Tax excluded)
US$ 150.00 (Tax excluded)

  • Versions
Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

ODOO'S FUNCTION

Odoo includes Control Points to define quality inspection rules and Quality Checks to record the results of those inspections at key steps in production, delivery, or receipt.



CLUEDOO'S FUNCTION

CLuedoo introduces Quality Point Groups/Quality Control Groups and Quality Check Groups to manage inspections in batches for greater efficiency:

1️⃣ Control Points can be grouped into a Quality Point Group, letting you handle multiple related points as a single set

2️⃣ Quality Checks can be grouped into a Quality Check Group, enabling batch management and tracking

3️⃣ Option to include or exclude an entire Quality Check Group when running inspections

4️⃣ Ability to archive or restore quality check groups, individual checks, or linked quality alerts




QUALITY POINT GROUPS

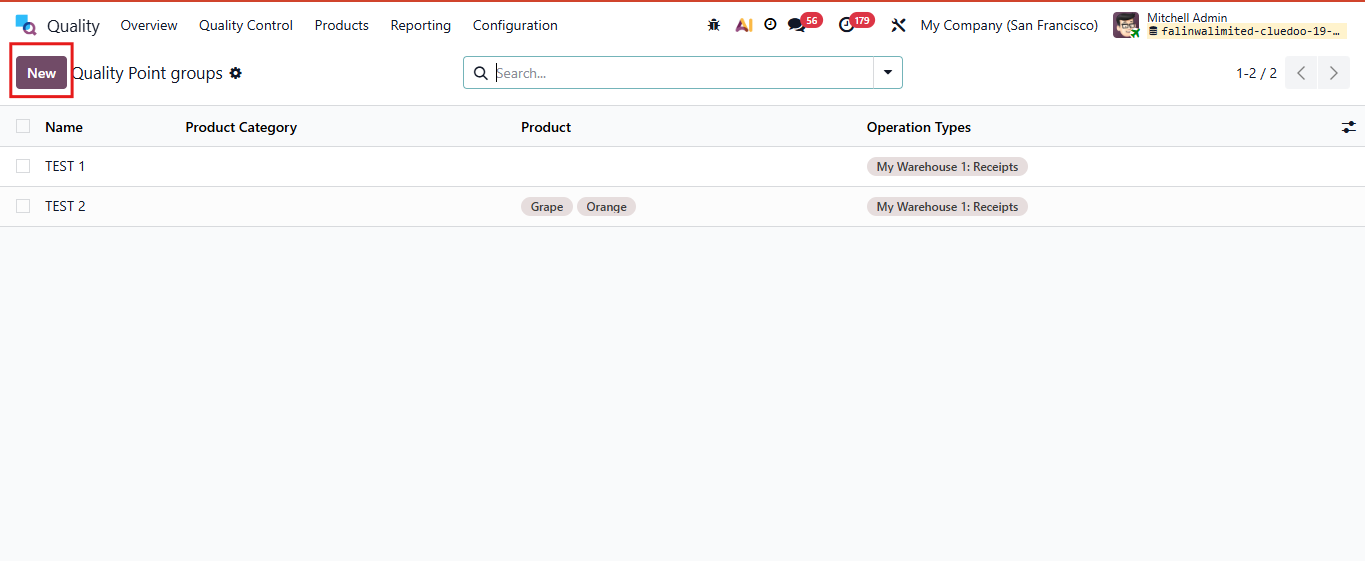

1. Go to Quality → Quality Control → Quality Point Groups.

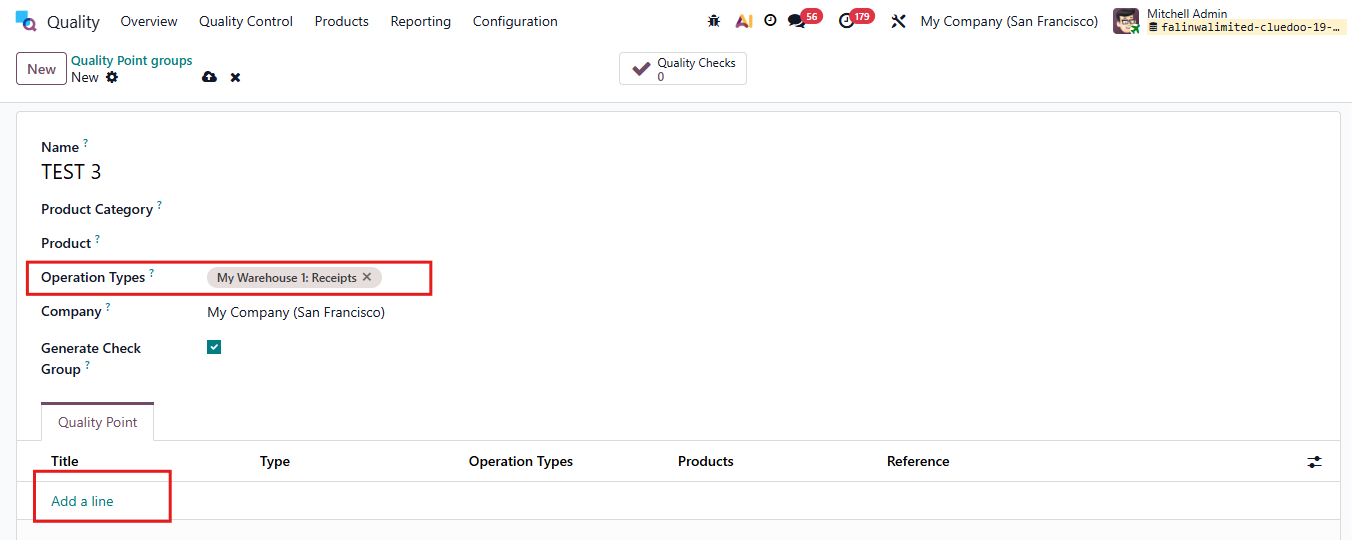

Create a Quality Control Group.

You have to fill the field Operation Types

Note: we have a checkbox Generate Check Group to decide whether to include /exclude the Quality Check Group when using Quality Check

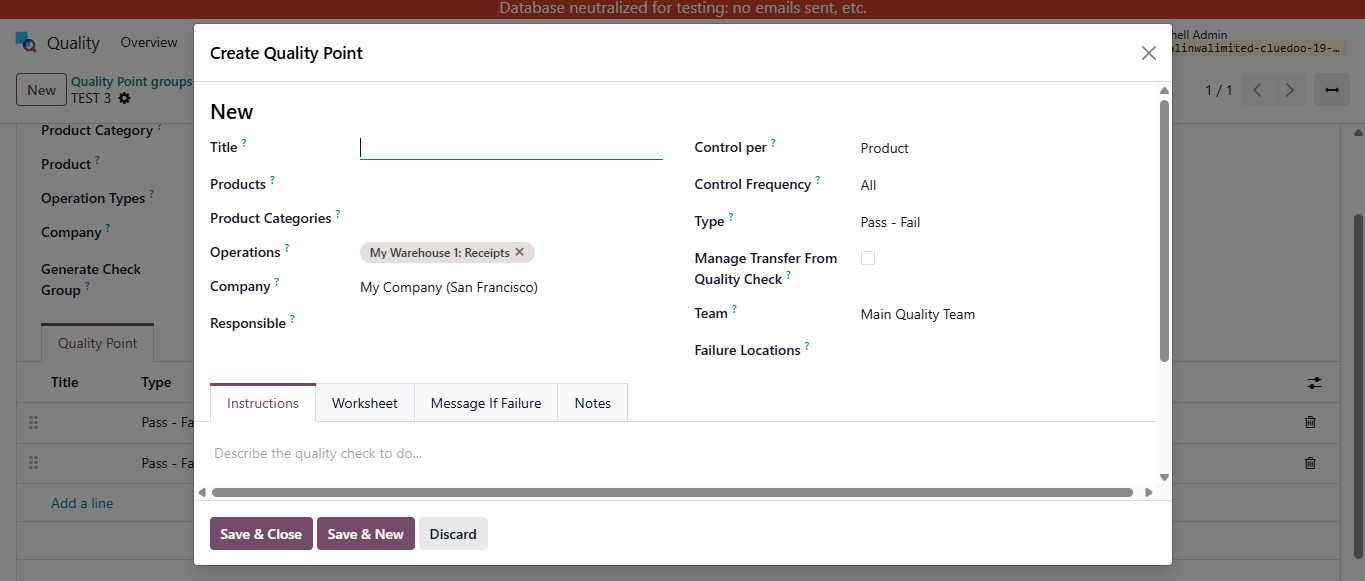

2. We can also create Quality Control Points from here, under the Quality Point tab



QUALITY CONTROL POINTS (ODS)

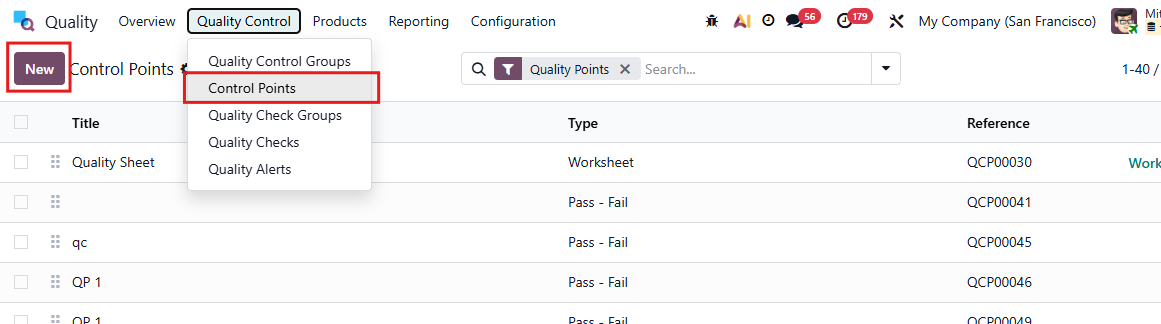

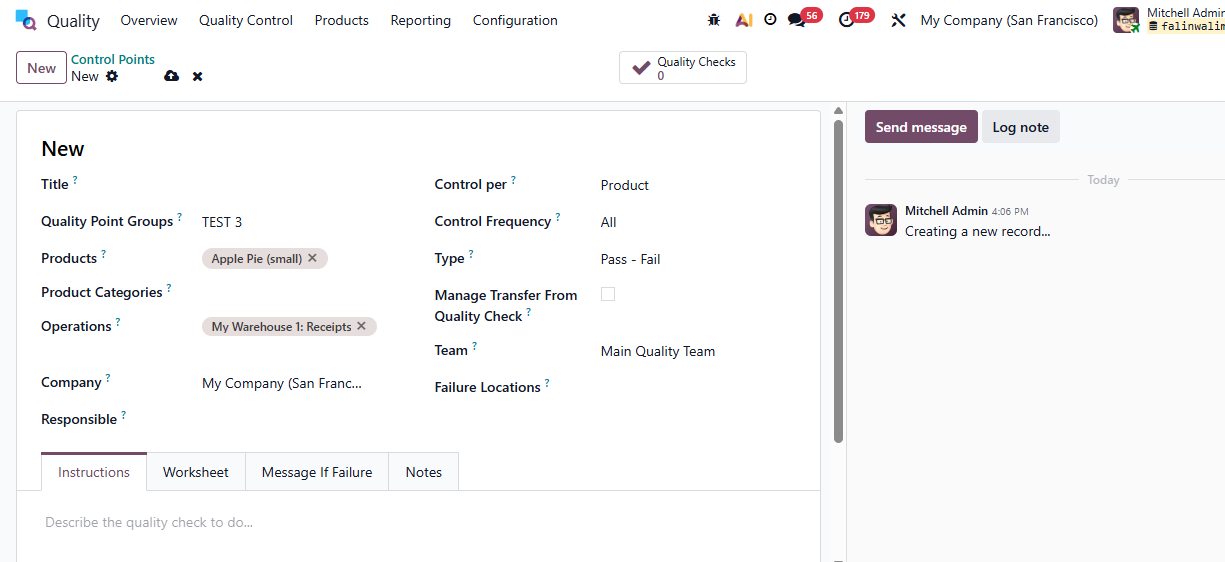

Go to Quality → Quality Control → Quality Control Points. Create Quality Control Point.

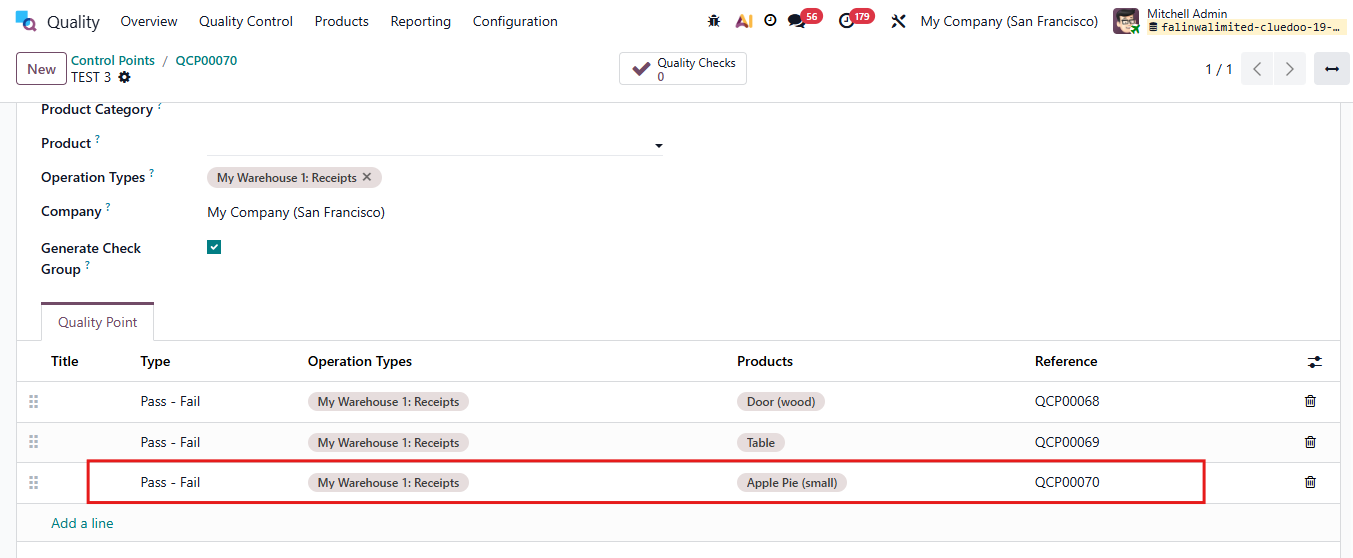

We can choose the Quality Point Group that we created → the quality control points will automatically be added under the Quality Point tab in the Quality Point Group



QUALITY CHECK GROUPS
1. Go to Purchase > Purchase Order

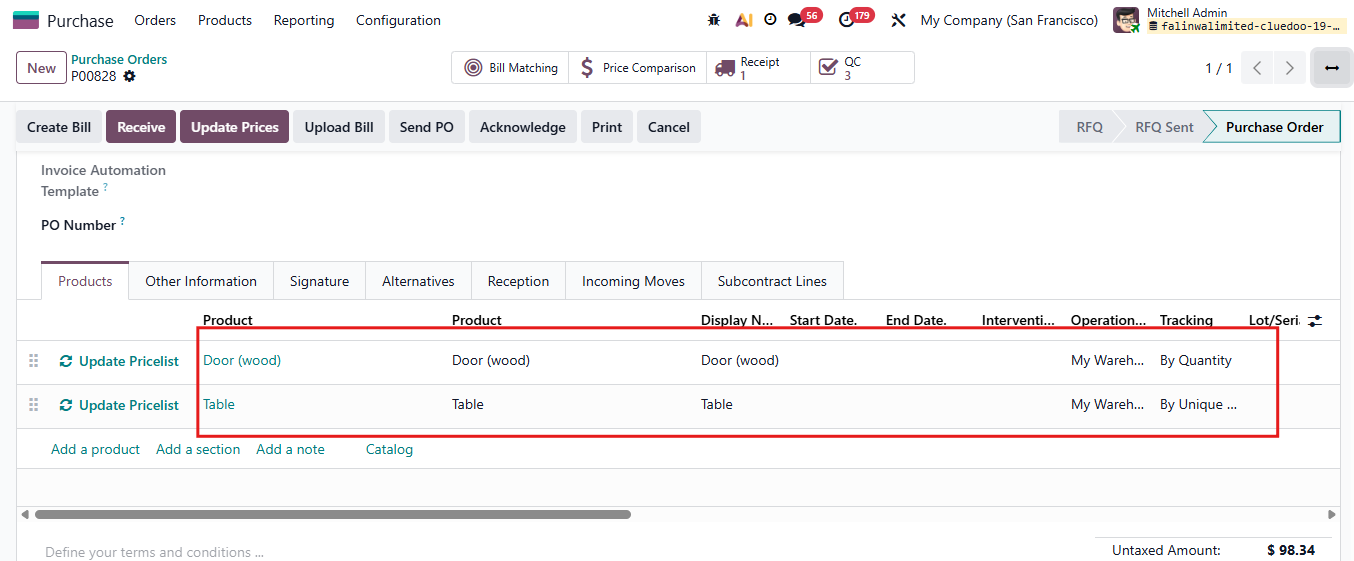

Create a Purchase Order with product have quality control point.

Quality Checks are automatically created after Confirm Order

2. Quality Check Group is also automatically created due to the Quality Check Point you set

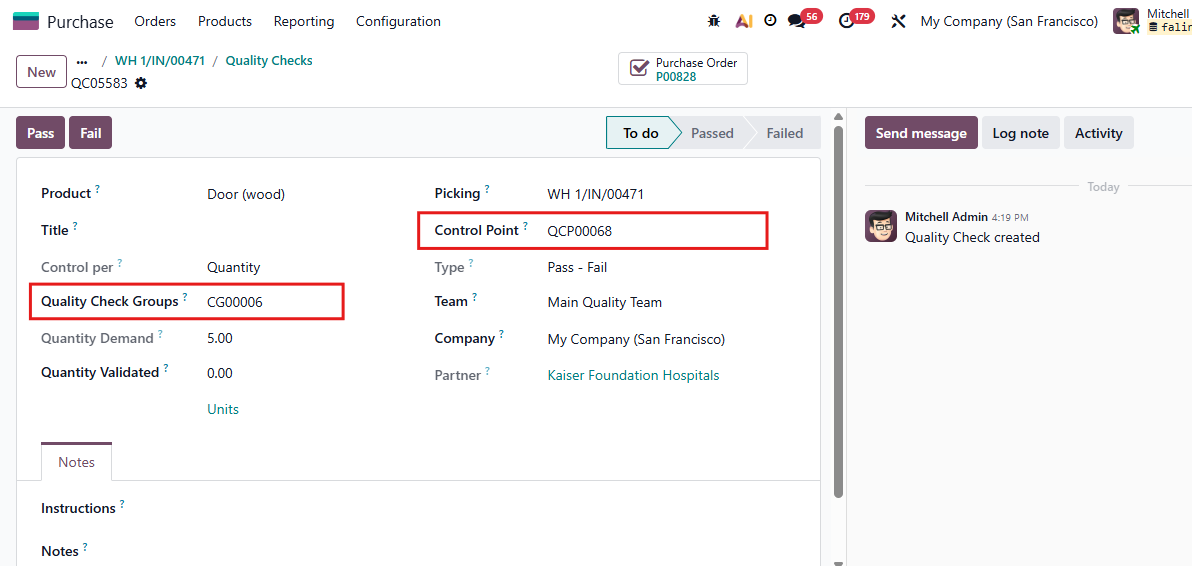

In the Quality Checks, you can check all the details about the Quality Check Group, Picking, and the Quality Control Point

Note:
Quality Checks with the same Quality Point Group will be added to the same Quality Check Group

e.g., 2 products in 2 different Control Points but with the same Quality Point Group > QCs for those 2 products in the same transfer will be added to the same Quality Check Group

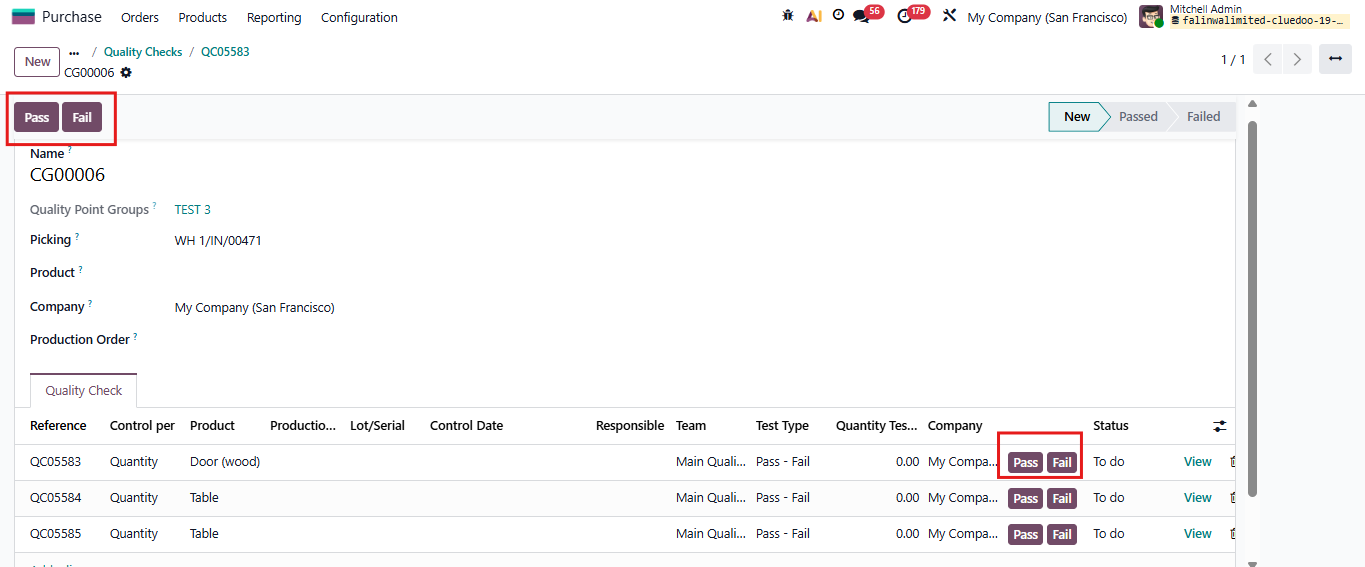

In Quality Check Group,
  • You can see that the Quality Point Group is automatically added as well
  • You can mass pass/fail for all Quality Check or pass/fail for each one in Quality Check Line

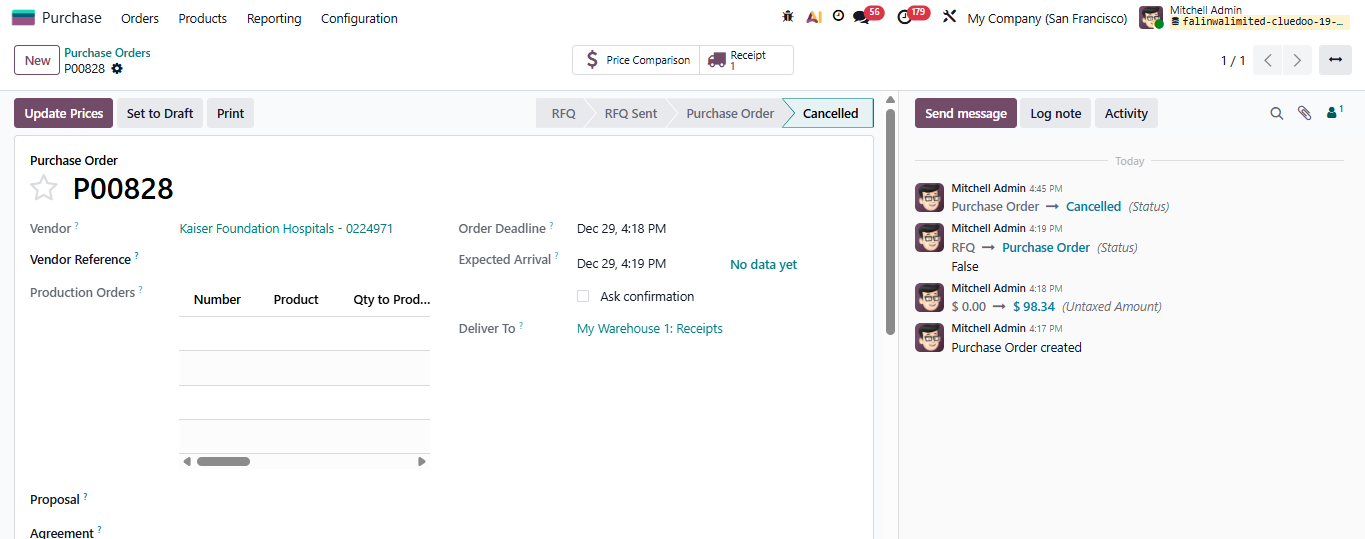

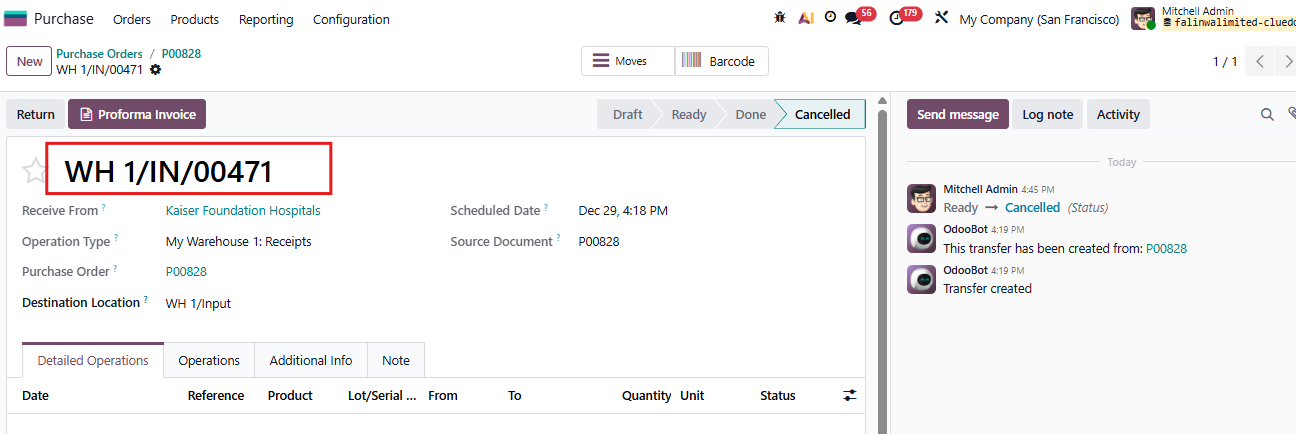

If the transfer is canceled

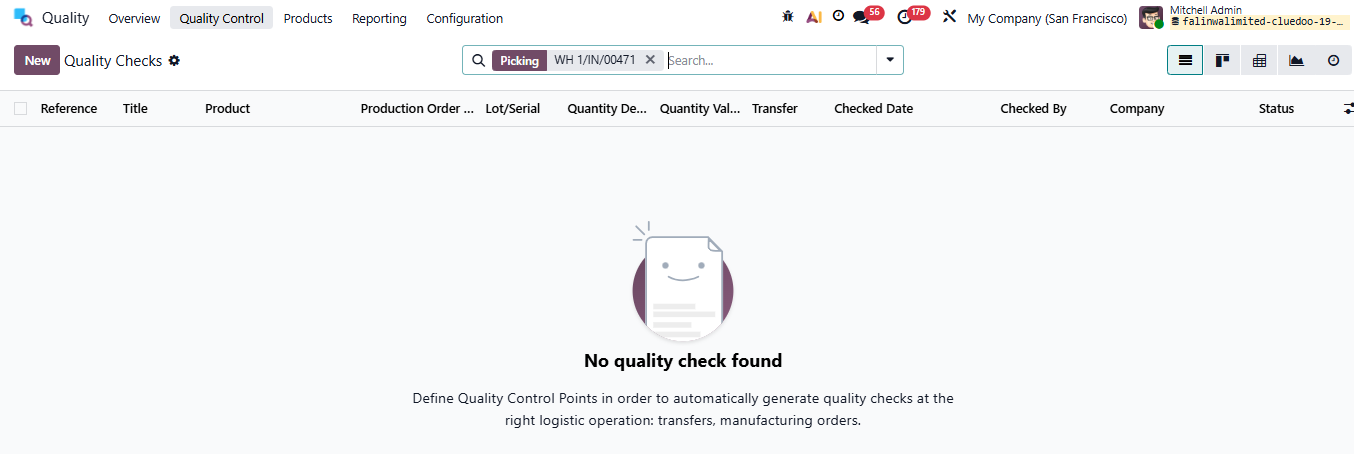

> Quality Checks will be deleted
> Quality Check Group will be deleted as well


ARCHIVE QUALITY CHECK GROUPS/QUALITY CHECKS/QUALITY ALERTS

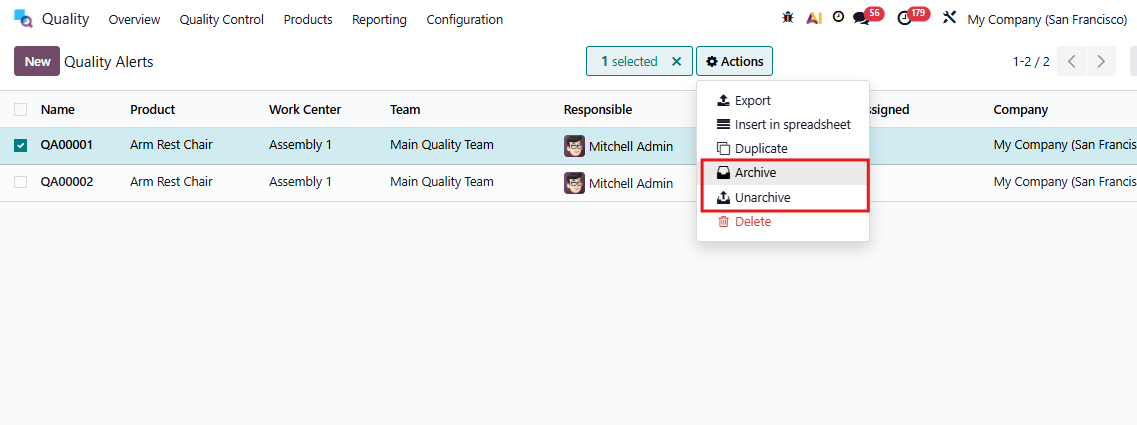

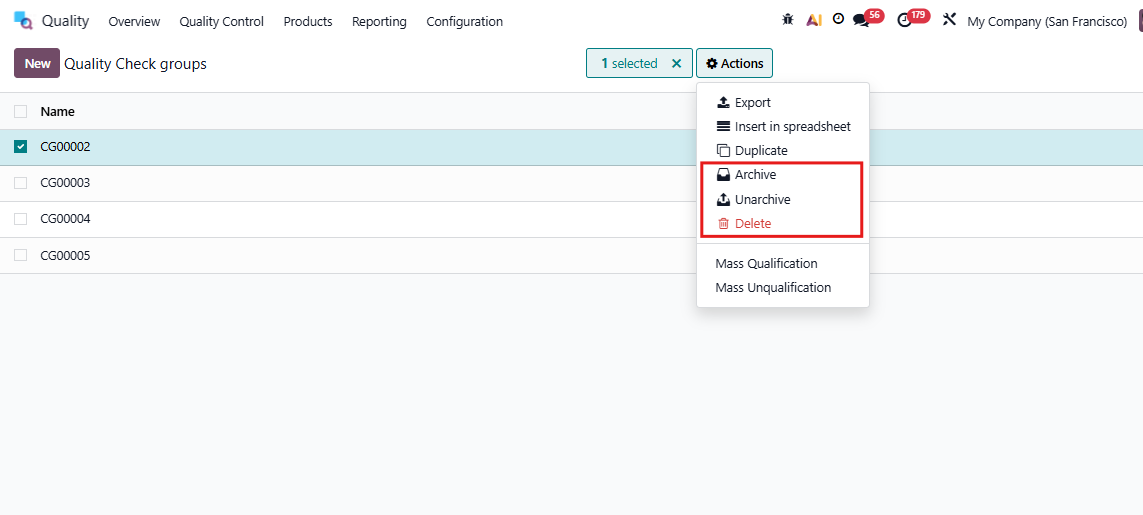

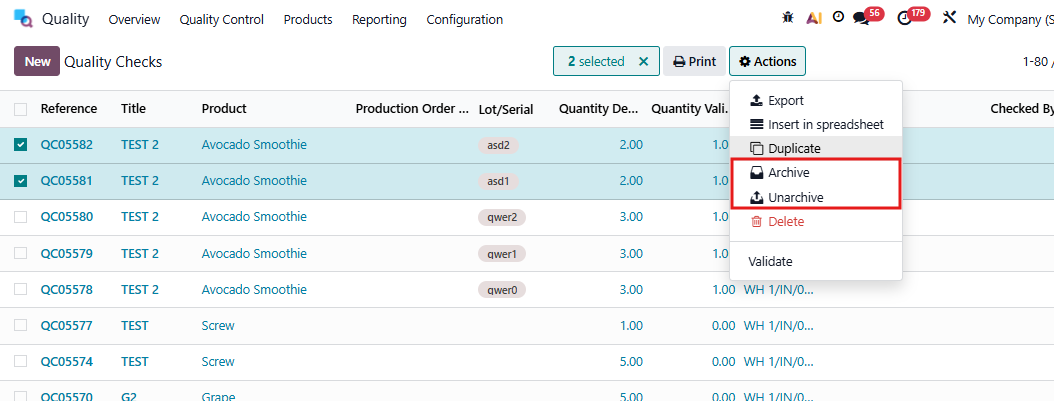

Go to Quality > Quality Check Groups/Quality Checks/Quality Alerts > New or choose the one(s) that you want to archive > Actions > Archive

You have the option to Unarchive as well.
